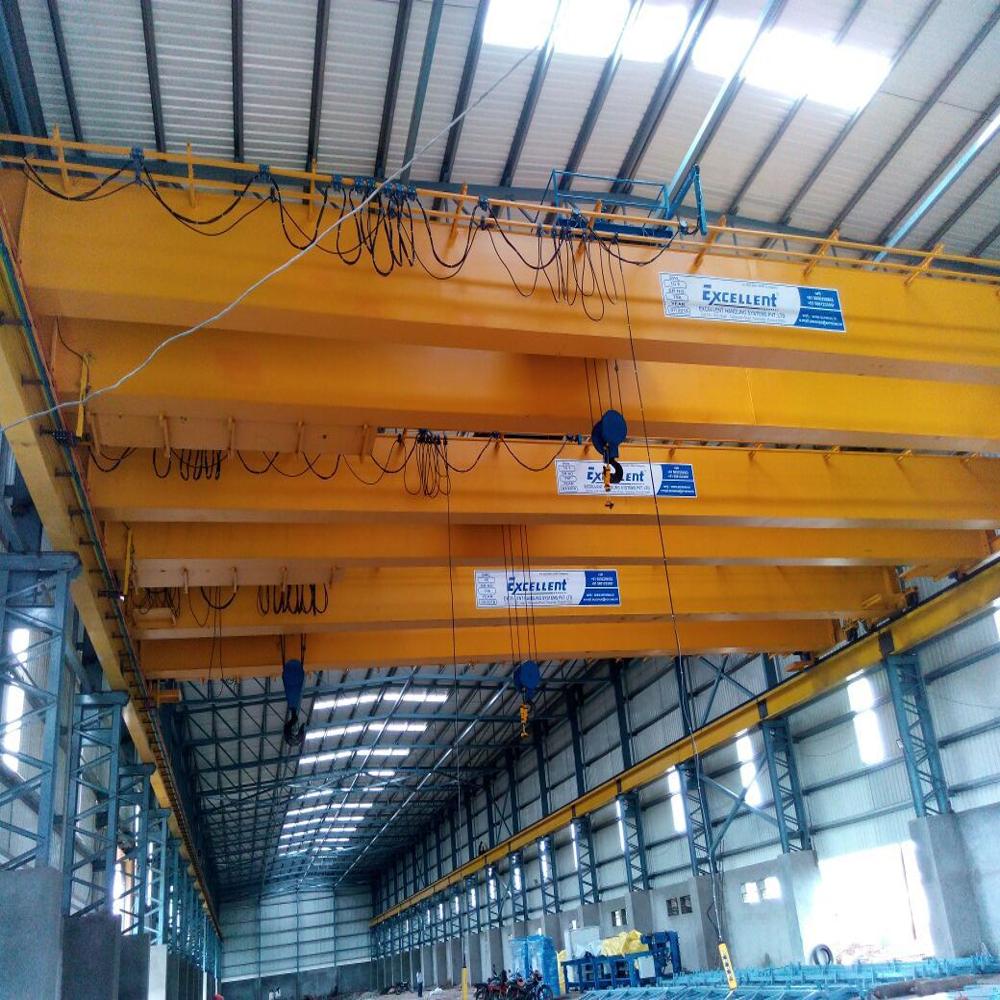

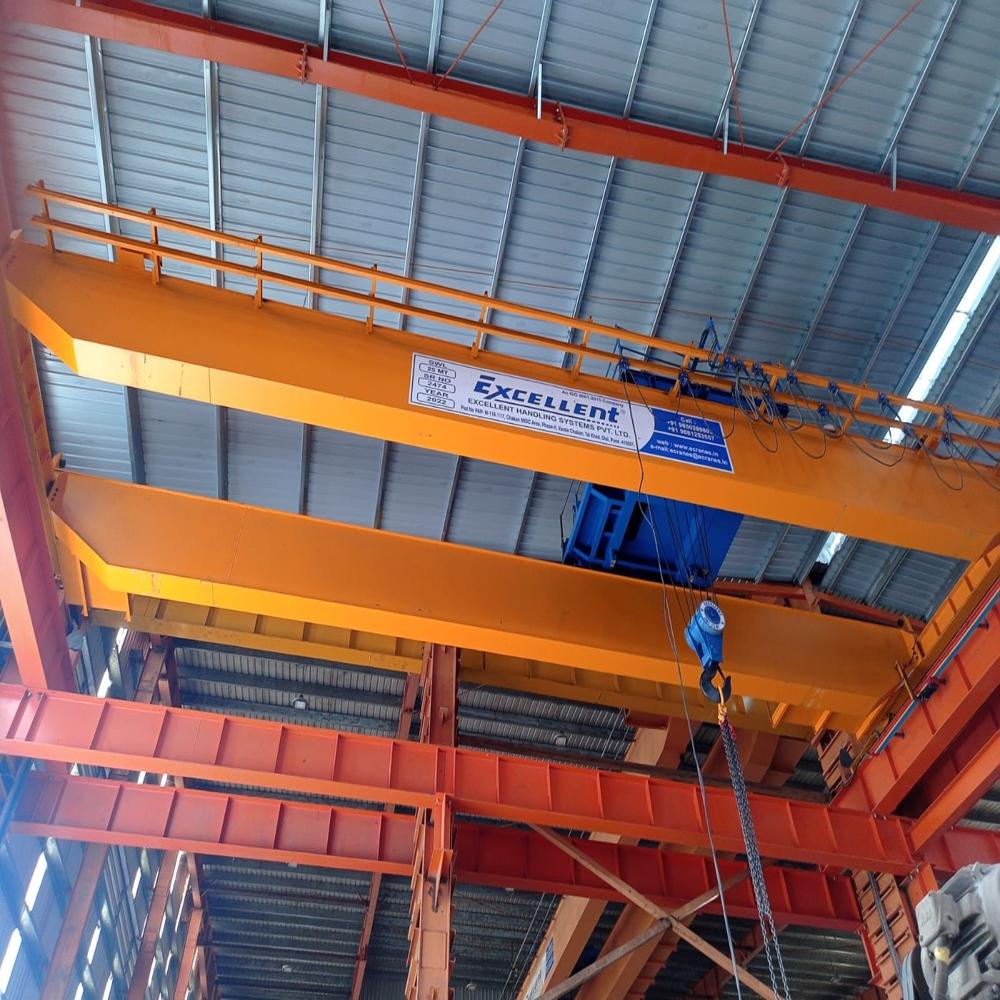

Double Girder EOT Cranes

Name: Double Girder EOT Cranes
Brand: EXCELLENT HANDLING SYSTEMS PVT. LTD.
Price: 999999 INR
Availability: InStock

Price 999999 INR/ Number

Get a Price/Quote

Double Girder EOT Cranes Specification

Electric Hoist
Heavy Duty Type / Customized

Traveling Speed
5-20 m/min (adjustable)

Application
Industrial, Warehouses, Construction, Steel Plants, Power Plants

Color
Yellow, Customized on request

Gearbox
Helical / Spur Type, Hardened & Precision Machined

Brake
Electro Hydraulic / DC Disc brakes

Emergency Stop
Available

Condition
New

Load Capacity
Up to 100 Ton

Max. Lifting Height
Up to 30 meters

Max. Lifting Load
100 Ton

Rated Lifting Moment
Customized as per requirement

Span
5 m to 35 m

Lifting Mechanism
Wire Rope Hoist / Hook

Lifting Speed
4-8 m/min (variable as per design)

Operating Mode
Cabin / Pendant / Radio Remote Control

Power Supply
3 Phase AC

Voltage
380-440V

Double Girder EOT Cranes Trade Information

Minimum Order Quantity
2 Number

Payment Terms
Paypal, Cheque, Cash Advance (CA)

Supply Ability
1 Number Per Day

Delivery Time
20-25 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
water resistent

Main Export Market(s)
Australia, South America, Western Europe, Middle East, Central America, Asia, Eastern Europe, North America, Africa

Main Domestic Market
All India

Certifications
ISO

About Double Girder EOT Cranes

Acclaimed in the industry as a manufacturer, supplier, distributor, trader and exporter, we are involved in providing Double Girder EOT Cranes from Maharashtra, India. These EOT cranes are basically for utilize in ship yards, ports, cement and engineering industries. Being low in power consumption, safe and secure, our complete assortment of double girder EOT crane is strictly examined on numerous quality norms. Provided gamut of EOT cranes is accessible with us in diverse specifications and models.

Features:

High strength
Excellent performances
Flawless finish
Minimum fuel consumption

Product Specification

Maximum Lifting Capacity	1-5 5-10 30-40 40<
Girder Type	Double
Travel Speed	custom
Span	custom
Brand	Excellent
Crane Type	Overhead/EOT
Lifting Speed	Custom
Power Source	Electric

Superior Lifting Capacity

These cranes are constructed to manage demanding loads, accommodating up to 100 tons with customizable lifting moments and lifting speeds between 4 to 8 meters per minute. The double girder structure allows for increased stability and height, making it an optimal choice for handling bulky or heavy items in industrial facilities.

Versatile Operating Modes and Controls

The Double Girder EOT Crane is adaptable to various working environments, offering cabin, pendant, and radio remote control options. Operators can choose PLC-based or manual control systems based on operational complexity and preference. All controls are designed to enhance productivity and operational safety.

Enhanced Safety and Durability

Engineered with a focus on safety, the cranes come with overload protection, limit switches, and emergency stop mechanisms. Constructed with fabricated box-type end carriages and protected by anti-corrosive epoxy coating, these cranes ensure longevity and reliable performance under medium to heavy-duty cycles.

FAQs of Double Girder EOT Cranes:

Q: How does the double girder design benefit heavy-duty lifting operations?

A: The double girder design provides greater strength, stability, and load distribution than single girder cranes. This enables the crane to lift heavier loads, reach higher lifting heights, and span wider distances, making it especially advantageous for industrial applications that require robust and reliable material handling.

Q: What safety features are included in Double Girder EOT Cranes?

A: These cranes are equipped with several safety mechanisms, including overload protection, limit switches to prevent over-travel, emergency stop buttons, and precision brakes like electro hydraulic or DC disc brakes. These features collectively reduce the risk of accidents and ensure safe operation in various environments.

Q: Where can Double Girder EOT Cranes be used effectively?

A: They are ideally suited for industrial sites such as manufacturing units, warehouses, construction zones, steel mills, and power plants. The cranes robust build, adaptive span (5-35m), and high load capacity make it extremely versatile for a wide range of heavy-duty lifting tasks.

Q: How are the control systems operated in these cranes?

A: Operators can control the crane via cabin controls, pendant stations, or wireless radio remotes. Depending on requirements, the control system can be either PLC-based for automated and precise operations or manual for straightforward handling, ensuring flexibility in operation.

Q: What is the maintenance process for these cranes?

A: Routine maintenance involves lubricating moving parts, inspecting wire ropes, checking the integrity of limit switches and brakes, and ensuring the anti-corrosive paint is intact. Scheduled servicing under manufacturer guidance prolongs operational life and maintains safety standards.

Q: When should a customized lifting moment or hoist be considered?

A: A customized lifting moment or specialized hoist design should be considered when the application involves unusual load dimensions, unique weight distributions, or non-standard lifting paths. Customization ensures safe and efficient operation tailored to specific project requirements.
